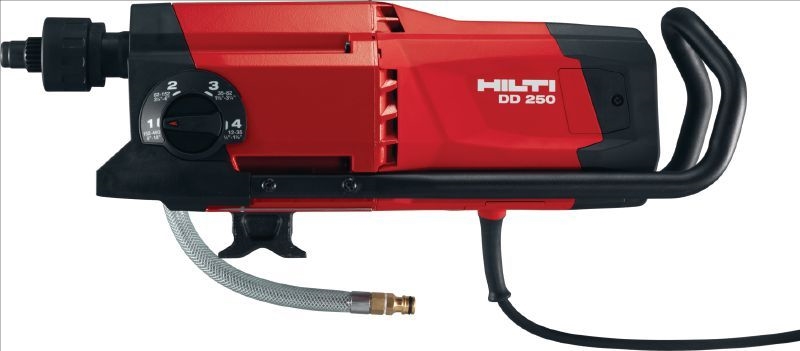

Air-cooled, heavy-duty drive unit with four-speed gearing and convenient controls
Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
Hole-starting function for large-sized core bits
Real-time information display – digital spirit level, gear selector, power control function, trip counter, running time counter and easily understood service messages
Designed for versatility – suitable for an extremely wide range of applications
Applications
Penetrations for ducts, pipes and cables
Openings for ventilation
Stitch drilling for breaches
Coring holes for service entries
Coring holes in ceilings, walls and floors without hammering and vibration
Technical Information
Diameter range - 12 - 450 mm
Base material - Concrete

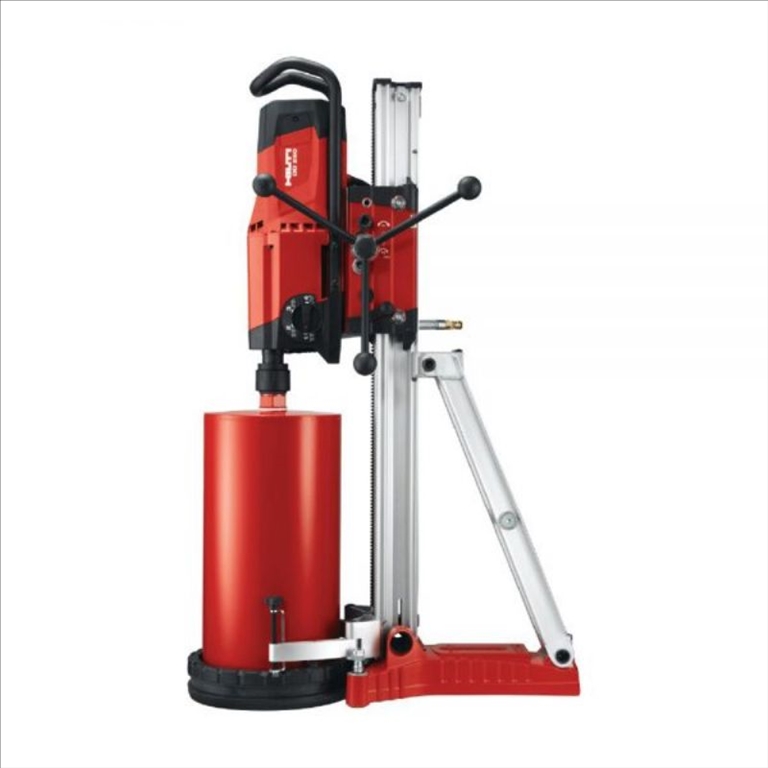

Operation mode - Rig-based drilling system
Number of gears - 4
Weight - 33.7 lb.
Weight of complete system - 81 lb.
Dimensions (LxWxH) - 24.8 x 7.5 x 8.5 in
A-weighted emission sound pressure level - 93 dB (A) 1
