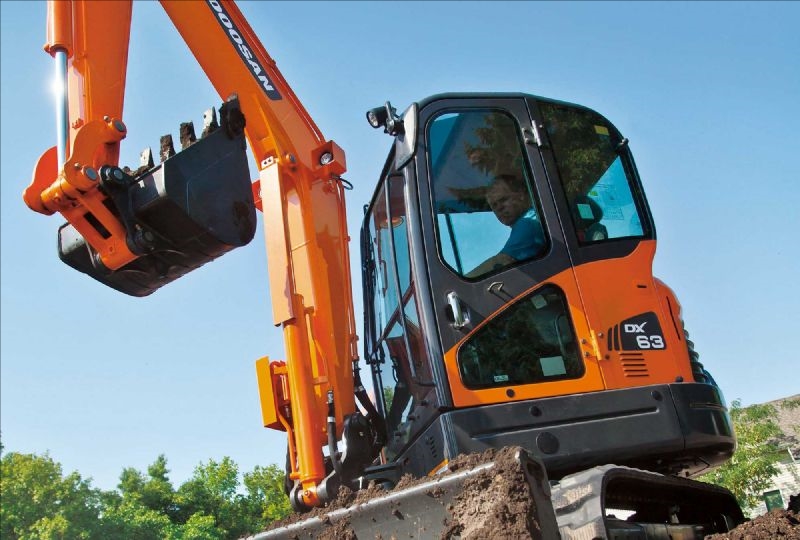

Doosan DX63-3 - Digger (6 Ton)

Description

The introduction of the new DX63-3 with conventional tail swing model provides customers with product that meet their daily demands

• high performing
• reliable
• cost effective machines that operate with minimum impact on human health and the environment.

Technical Information

• Operating weight - 6.250 - 6.370 kg
• Engine - 44.3 kW (59.4 HP) / 2.200 RPM
• Width - 1980 mm
• Max. reach ground level (short / long arm) - 5930 / 6230 mm
• Max. dumping height (short / long arm) - 4045 / 4260 mm
• Max. digging force – bucket - 43.2 kN
• Max. digging force - arm (short / long arm) - 28.7 / 25.7 kN
• Max. digging depth (std / long arm) - 3815 / 4155 mm
• Engine - Yanmar 4TNV98C
