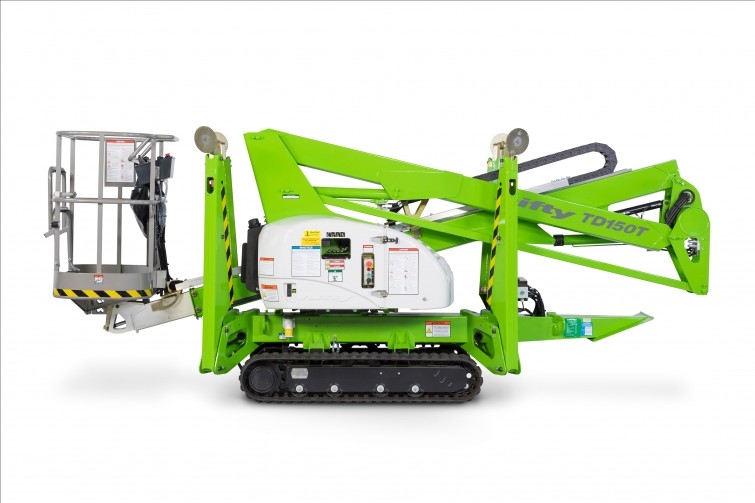

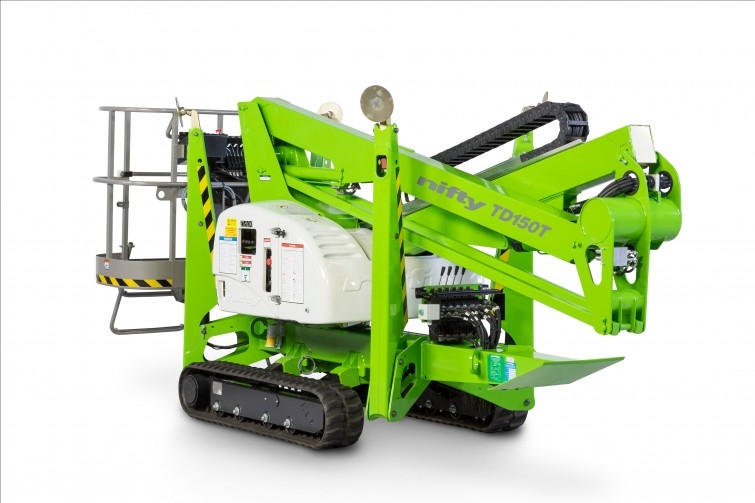

NIftylift (TD150T) - Tracked Hoist 15m

Description

TD150T Features

Superb Gradeability - Will climb very steep inclines as high as 45% (24°)

Excellent Traction - Better grip on uneven terrain

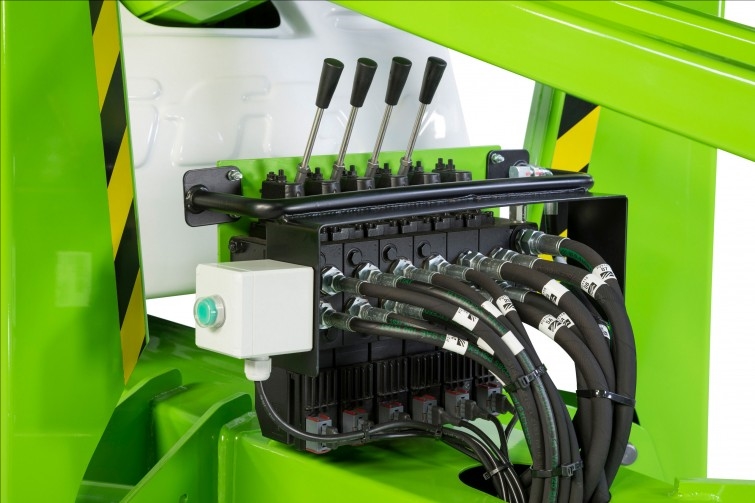

Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain

Weight Saving Design - Lower cost transportation & better fuel economy on site

Technical Information

TD150T Specifications

Working Height - 14.7m 48ft 6in

Working Outreach - 7.55m 25ft

Platform Height - 12.7m 42ft

Machine Width - 1.4m 4ft 7in

Machine Height - 2m 6ft 7in

Machine Length - 4.7m 15ft 5in

Working Width - 3.8m 12ft 6in

Travel Speed - 2.1km/h 1.3mph

Gradeability - 45% / 24°

Minimum Weight - 2025kg 4500lbs

Safe Working Load - 225kg 500lbs

Cage Width - 1.4m 4ft 7in

Cage Depth - 0.7m 2ft 4in

Maximum Slope - 21% / 12°

Power Options - Diesel Only (Kubota 722 - 15kW/20hp)
