Navigator 6.0 - Manual Scissor Lift
Product Images
Description

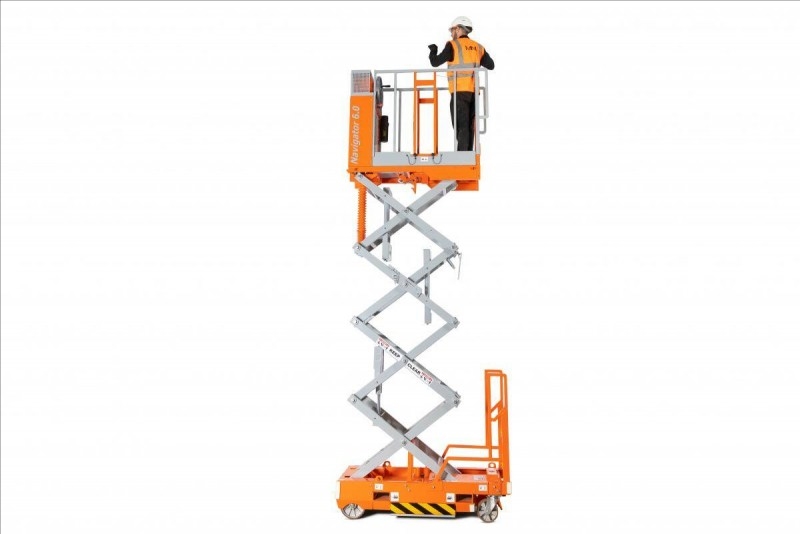

The Navigator 6.0 is the first self-powered push-around scissor lift achieving a working height of 6.0 metres and is rated for both indoor and outdoor use. Simply step in, turn the handle and elevate to your chosen working height with materials and tools giving you zero downtime and power-free working 24/7. Carbon Zero, meaning no electrics, batteries or hydraulics.
Technical Information
Specifications:
- Working Height - 6.0M
- Working Platform - 4.0M
- Working Footprint - 1.3(L) x 0.73(W)M
- Platform Dimensions - 0.90(L) x 0.69(W)M
- Closed Dimensions - 1.3(L) x 0.73(W) x 1.98(H)M
- Safe Working Load - 150KG
- Maximum Side Force - 200N
- Maximum Wind Speed (outdoors) - 12.5 M/S
- Maximum Gradient - 1 Degree
- Maximum Load per Fixed Wheel - 800KG
- Maximum Load per Swivel Wheel - 2000KG
- Machine Weight - 530KG
