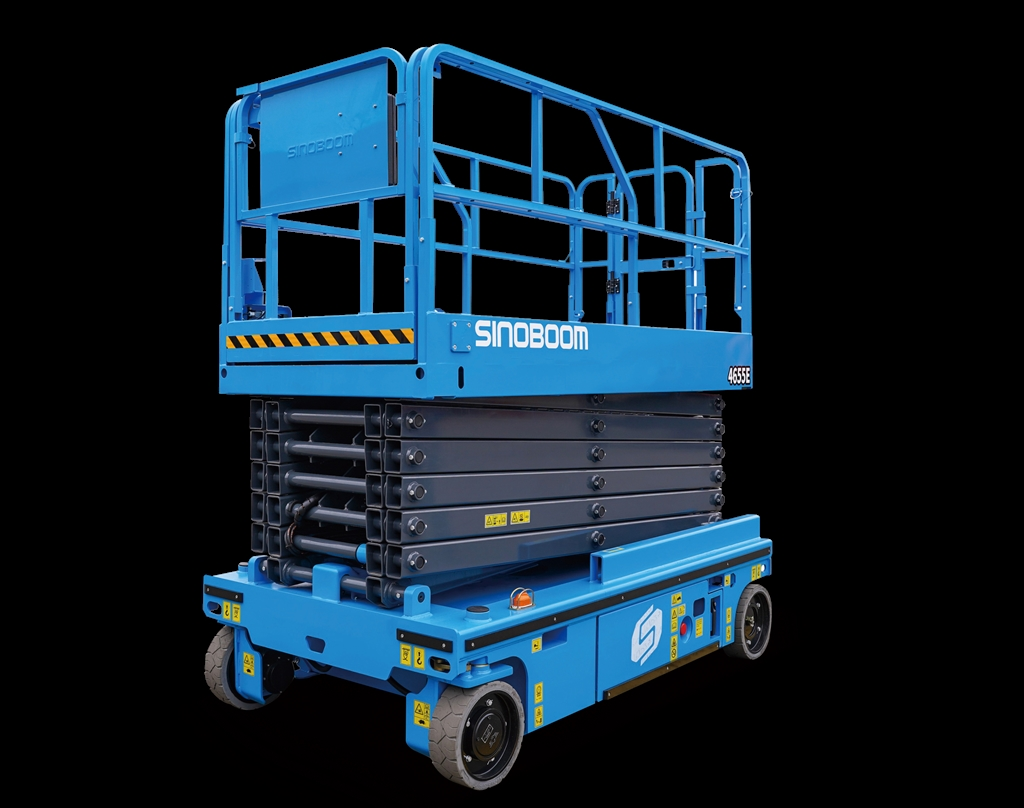

Sinoboom - 8m Scissor (Narrow)
Product Images
Description
Performance
Platform Allowable Occupants
(Indoor/Outdoor) - 2 persons/1 person
Platform capacity - 250kg (551lbs)
Drive Speed-Stowed - 0～4km/h (0～2.5mph)
Drive Speed-Raised - 0～0.8km/h (0～0.5mph)
Elevation Time (Unloaded) - 30s~35s
Descent Time (Unloaded) - 34s~39s
Gradeability - 25%
Turning Radius
(Inside/Outside) - 0/2.1m (0/6'10.7'')
Tilt Rating
(Front to Back/Side to Side) - 3°/1.5°
Tyres-solid - 380×125mm (15×5")/solid
Technical Information
Dimensions
Max Working Height - 10.1m/8m (33'2"/26'3'')
Max Platform Height - 8.1m/6m (26'7"/19'8'')
Max Horizontal Extension - 0.9m (3')
Length-Stowed - 2.46m (8')
Width-Stowed - 0.83m (2'8.7")
Height - stowed Rail Folded - 1.96m (6'5")
Height - stowed Rail Unfolded - 2.36m (7'9")
Wheelbase - 1.88m (6'2")
Ground Clearance (Pothole Guard Stowed) - 0.1m (4")
Ground Clearance (Pothole Guard Deployed) - 0.025m (0.98")
Platform Dimensions(L×W×H) - 2.30m×0.8m×1.1m (7'6.5"×2'7.5"×3'7")
