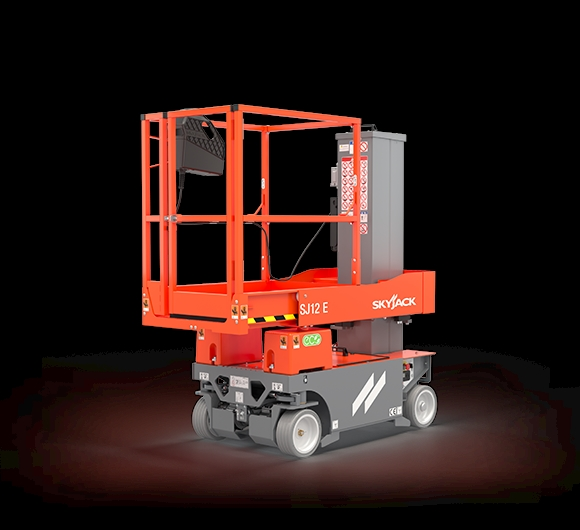

Skyjack SJ12E - 4m Scissor

Description

Standard Features

■ Variable speed, front two-wheel electric drive

■ Overload sensing system

■ Drivable at full height with platform retracted

■ 90° Steering (zero inside turning radius)

■ Dual holding brakes

■ On-board visual interface with diagnostic capabilities

■ Shroud style, impact resistant composite control box

■ Proportional controls for drive & lift functions

■ 16” (0.41 m) Traversing platform

■ Multistage lift cylinders

■ 24V DC power source

■ 2 x 12V Batteries

■ Low voltage battery protection

■ 25% Gradeability

■ Solid rubber, non-marking tires

■ Fixed pothole protection system

■ 110V AC outlet at platform with GFI

■ Tilt alarm with drive & lift cut-out (2.5° x 1.5°)

■ All motion audible alarm

■ Lanyard attachment points

■ Operator horn

■ Lift rings/tie downs

■ Half height spring hinged entry gate

■ Removable oil filter

■ Forklift pockets (2.5” x 5”)

■ Telematics ready

Technical Information

Dimensions SJ12 E

Work Height – 18’ (5.48 m)

Raised Platform Height – 12’ (3.66 m)

Lowered Platform Height – 30” (0.76 m)

Overall Width - 30.5” (0.77 m)

Overall Length – 54” (1.37 m)

Stowed Height (Top of Mast) – 74” (1.88 m)

Platform Width (Inside Dimension) - 27” (0.69 m)

Platform Length (Inside Dimension) – 36” (0.91 m)
